Description

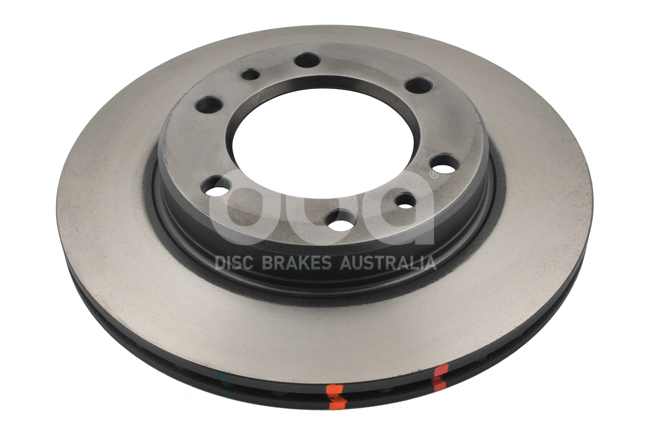

4000 Series disc brake rotors are a direct replacement single piece brake rotor, designed for drivers seeking upgraded braking above and beyond standard OE levels.
4000 Series HD features a smooth OE style rotor finish, popular for drivers looking for the benefits of a 4000 Series rotor but requiring an OE style look, such as controlled race divisions.
Cast from high carbon alloyed iron and undergoing Thermal Stability Profiling, DBA’s metallurgy can handle the increased stress and heat generated under intense braking applications, time and time again.
Featuring DBA’s Kangaroo Paw ventilation that implements a series of 144 diamond and teardrop patterned pillars, DBA achieves up to a 30% increase in surface area and 20% improvement in cooling efficiency (as compared to a traditional straight vane design).
Compatible Vehicles:
TOYOTA (20)
- Hi-Lux LN105/2.4 D (1989-1997) Brake Pads: DB1149
- Hilux Surf LN106/2.8 D (1988-1997) Brake Pads: DB1149
- Hi-Lux YN106/2.2 (1989-1997) Brake Pads: DB1149
- Landcruiser 70 series/2.4 (RJ70, RJ73) 77 kW (1984-1993) Brake Pads: DB288
- Landcruiser 70 series/2.4 (RJ70, RJ73) 84 kW (1988-1996) Brake Pads: DB288
- Landcruiser 70 series/2.4 (RJ70, RJ73, RJ70RV) 81 kW (1984-1993) Brake Pads: DB288
- Landcruiser 70 series/2.4 D (LJ70) 53 kW (1984-1985) Brake Pads: DB288
- Landcruiser 70 series/2.4 TD (LJ70) 63 kW (1985-1990) Brake Pads: DB288
- Landcruiser 70 series/2.4 TD (LJ70) 66 kW (1990-1993) Brake Pads: DB288
- Landcruiser 70 series/3.0 TD (KZJ78) 92 kW (1993-1996) Brake Pads: DB288
- Landcruiser 70 series/3.4 D (BJ70, BJ73, BJ75) 70 kW (1984-1996) Brake Pads: DB288
- Landcruiser 70 series/3.4 TD (BJ71, BJ74) 91 kW (1985-1986) Brake Pads: DB288
- Landcruiser 70 series/3.5 D 4×4 (PZJ70) 85 kW (1990-1994)
- Landcruiser 70 series/4.2 D (HZJ70, HZJ73, HZJ75) 96 kW (1990-1999) Brake Pads: DB1149
- Landcruiser 70 series/4.2 D (HZJ77) 96 kW (1990 -1999)
- Landcruiser 70 series/4.2 D 4×4 (HZJ75) 123 kW (1990-2001) Brake Pads: DB1149
- Landcruiser 70 series/4.5 4×4 (FZJ75, FZJ75RV) 158 kW (1992-1999) Brake Pads: DB1149
- Landcruiser BJ60/3.4 D (1981-1984) Brake Pads: DB288, Brake Caliper: Sumitomo
- Landcruiser FJ60/4.2 (1981-1984) Brake Pads: DB288
- Landcruiser HJ60/4.0 D (1981-1991) Brake Pads: DB288, Brake Caliper: Sumitomo
VOLKSWAGEN (2)
- Taro/2.2 (1989-1994) Brake Pads: DB1149
- Taro/2.4 D (1989-1994) Brake Pads: DB1149
