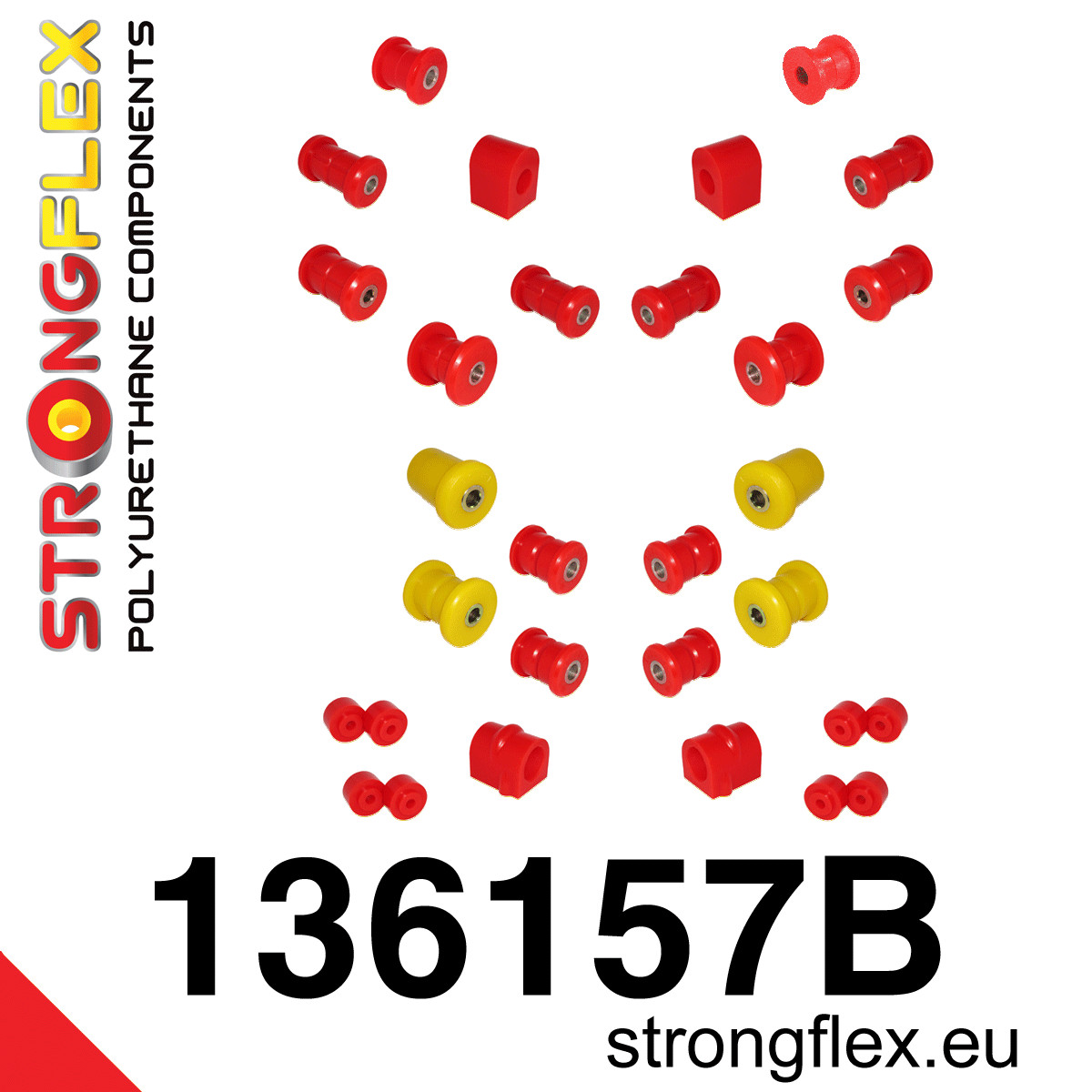

Strongflex 136157B: Full suspension polyurethane bush kit

Description

Reference: 136157B

Product name: Full suspension polyurethane bush kit

Fits to:

• Opel / Vauxhall Ascona B (75-81)
• Opel / Vauxhall Manta B (75-88)

Include:

• 8x 131126B: Front eye bolt mounting bush
• 2x 131134B: Front anti roll bar bush
• 2x 131601A: Front lower wishbone front bush SPORT
• 2x 131602A: Front lower wishbone rear bush SPORT
• 2x 131603B: Front subframe rear mounting bush
• 4x 131604B: Front upper wishbone bush
• 4x 131605B: Rear centre prop mount and rear tie bar to axle bushes
• 2x 131606B: Rear tie bar to chassis bushes
• 2x 131607B: Rear anti roll bar bush
• 1x 131608B: Rear panhard rod mount – to the body
• 1x 131609B: Rear panhard rod mount – to the chassis

Diagrams:

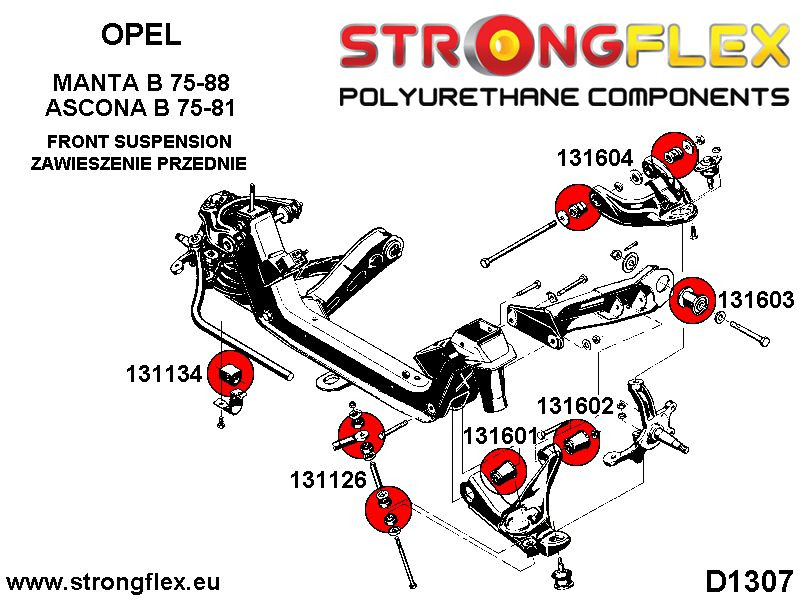

• D1307

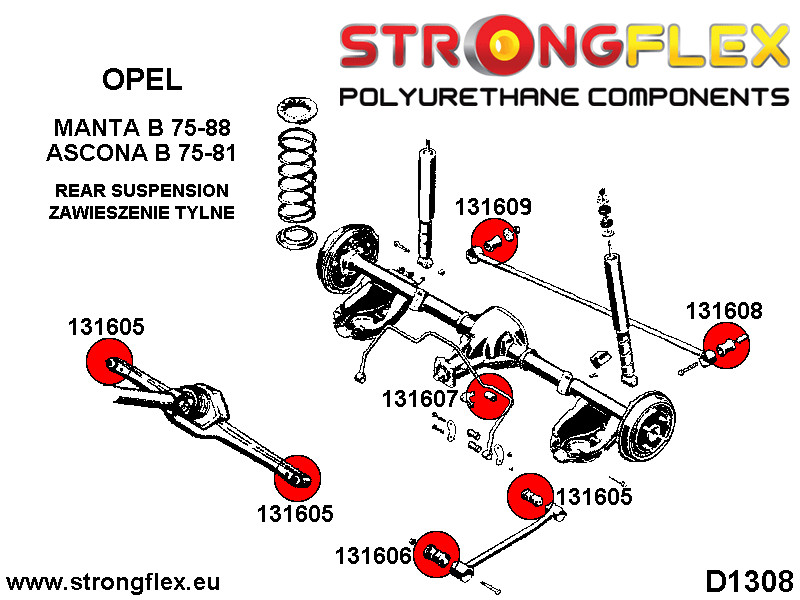

• D1308

Notes

• To install the polyurethane bushing 131604A, you must burn the old rubber bush. Do not remove the outer metal sleeve, it must be reused for this bushing!

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 28

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
