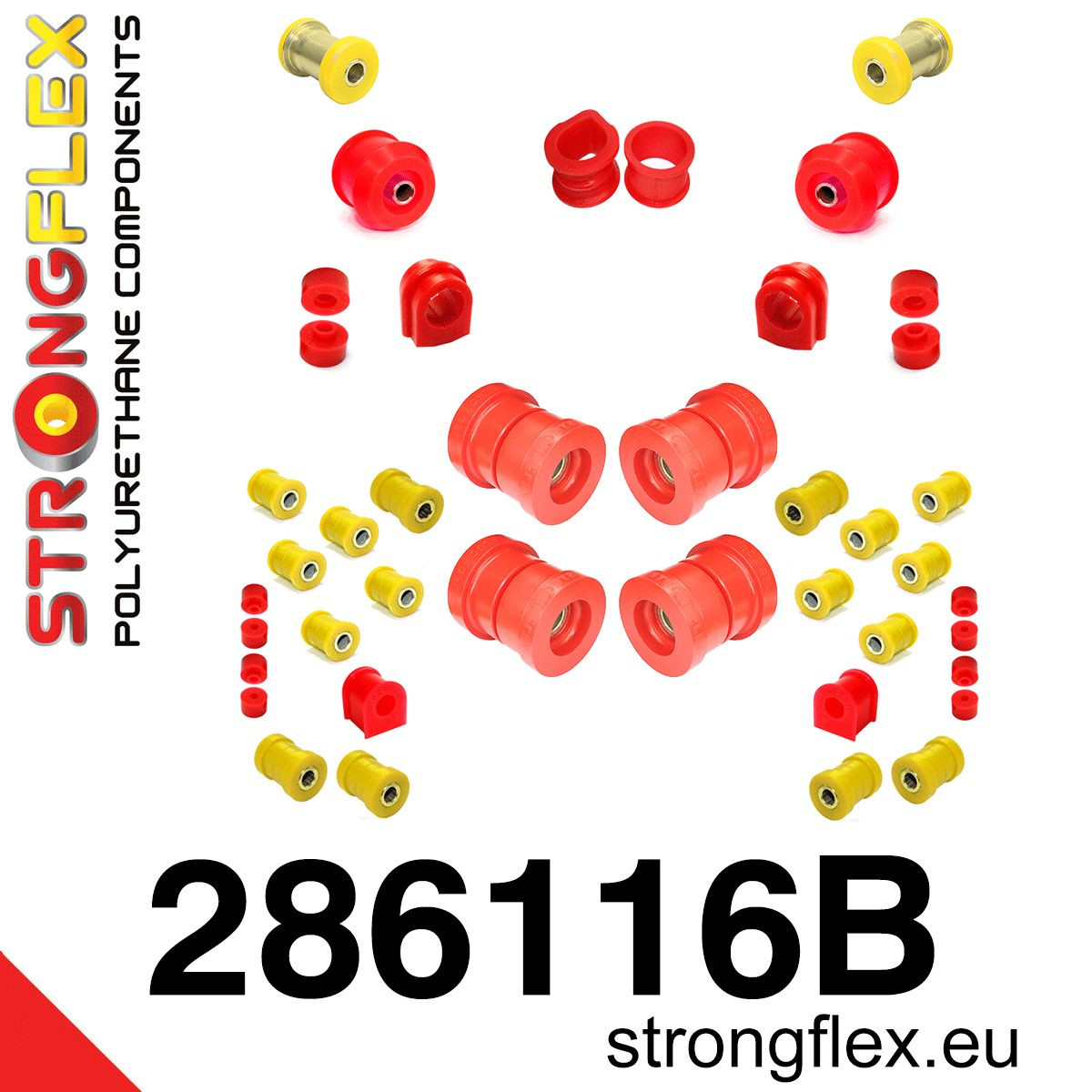

Strongflex 286116B: Full suspension bush kit

Description

Reference: 286116B

Product name: Full suspension bush kit

Fits to:

• Nissan Laurel VII (93-97) C34 RWD
• Nissan Laurel VIII (97-02) C35 RWD
• Nissan S-chassis (180SX / 200SX / 240SX / Silvia) VI (94-99) S14
• Nissan S-chassis (180SX / 200SX / 240SX / Silvia) VII (99-02) S15
• Nissan Stagea I (96-01) C34 RWD

Include:

• 2x 281400B: Front anti roll bar bush
• 2x 281265B: Front anti roll bar link bush
• 1x 281261B: Steering rack mount bush
                       45mm/48mm/50mm

• 2x 281262B: Front lower radius arm to chassis bush
• 2x 281263A: Front inner track control arm bush 34mm SPORT
  or
• 2x 281397A: Front inner track control arm bush 38mm SPORT

• 10x 281218A: Rear arm bush SPORT
• 4x 281398A: Rear trailing arm bushes SPORT
• 2x 281399A: Rear roe link inner bush SPORT
• 2x 281268B: Rear anti roll bar bush
• 4x 281269B: Rear anti roll bar link bush
• 4x 281270B: Rear beam mounting bush RWD
• 2x 281849B: Rear diff mount – front bush
• 2x 281850B: Rear diff mount – rear bush

Diagrams:

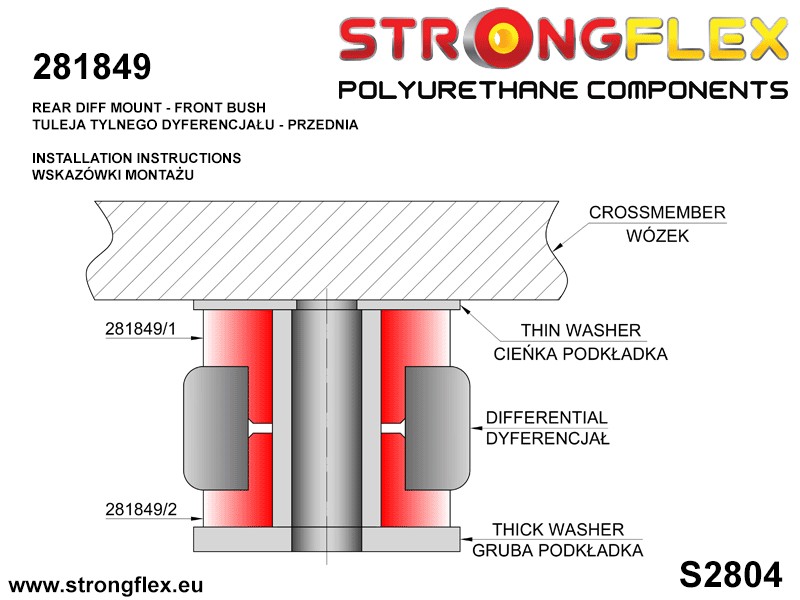

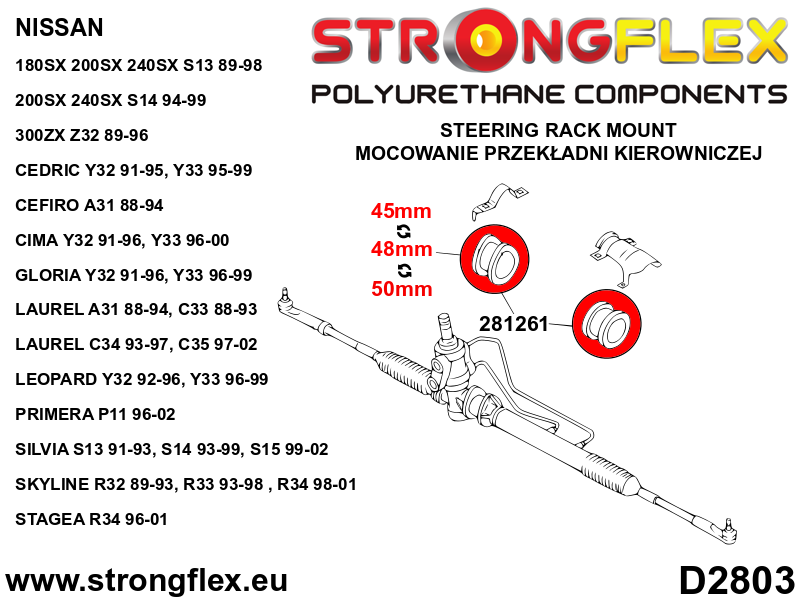

• S2803

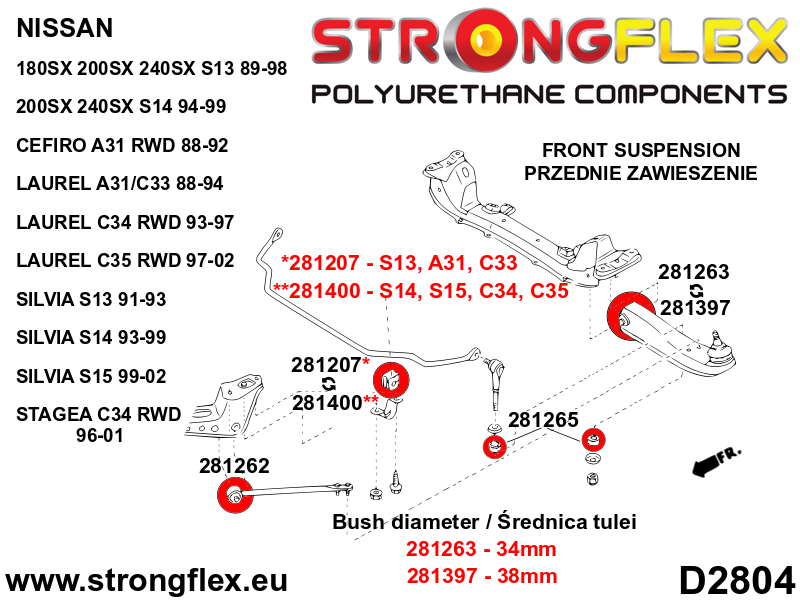

• D2804

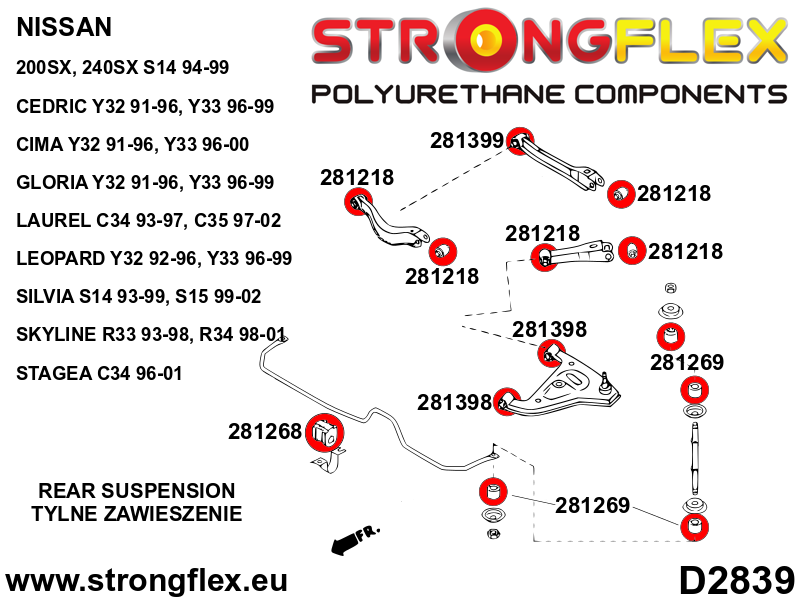

• D2839

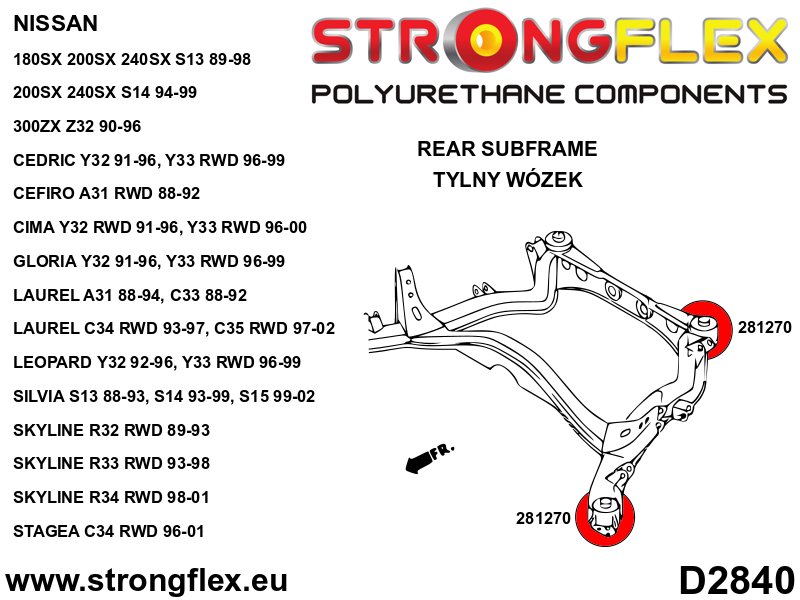

• D2840

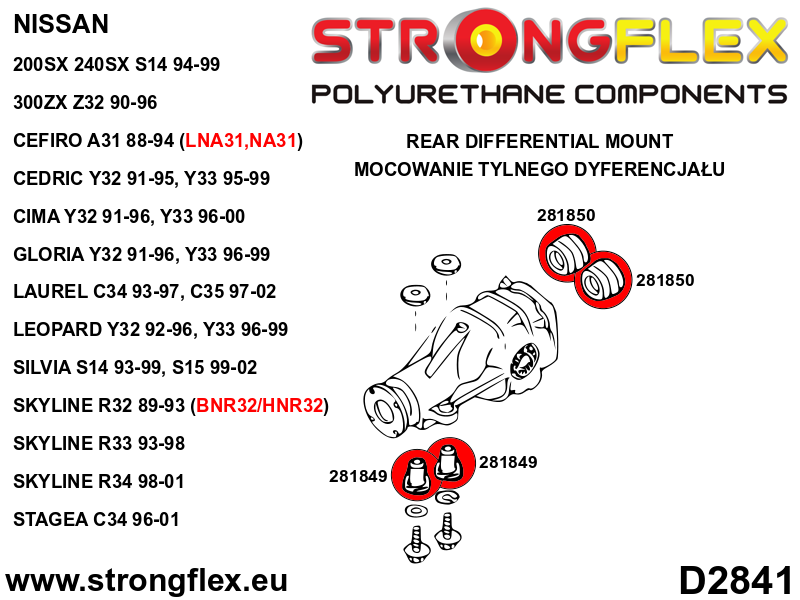

• D2841

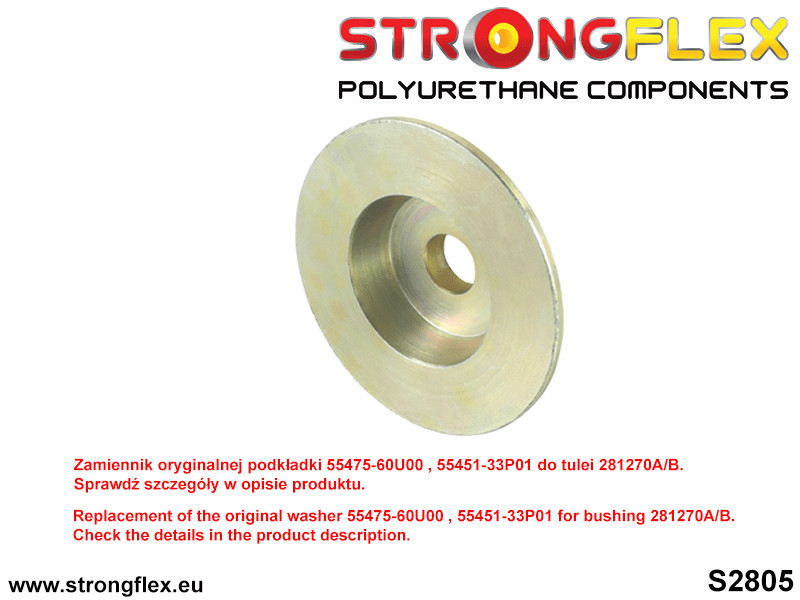

• S2805

Notes

• There are two different bushes of front wishbone: Ø34mm (281263) and Ø38mm (281397).
  Before placing order order, please check bushes in your model.
• Select the appropriate diameter of the steering gear bushing Ø45mm/Ø48mm/Ø50mm.
• Due to frequent modifications for Motorsport, Drift, etc., may lack the original rear bogie pads no. oem. 55475-60U00, 55451-33P01.
  You can buy a replacement for the original washer matched to our bush.
  In the “Subframe bush washers” field, select the number of washers you need (0pcs/2pcs/4pcs).

Required/car: 1

Pcs / prod: 1

Pcs / KIT: 39

Hardness: 80Sha

Material: POLIURETHANE (PUR/PU)

To every product we add grease!
